FreeStyle T24 Interview LED DMX Kit, Univ (2-Unit)



Manufacturer: Kino Flo

Product Code: KIT-FT24NU

Add to Wishlist




Kino Flo® Lighting Systems’ True Match® FreeStyle LED tubes are specially designed for operation in FreeStyle T44 & T24 fixtures for film production or stage design lighting. The FreeStyle LED tubes display Kino Flo’s True Match white light and RGBWW color management system found in Kino Flo’s LED lighting fixtures. The tubes are 4ft (1.2m) & 2ft (0.6m). On camera, FreeStyle LED tubes photograph with the same softness, the same subtle color reproduction as Kino Flo’s award-winning T12 high-output lamps. In addition to the >95 photo rendering index, cinematographers will see the difference the 310° LED tube makes when operated in a fixture or out of the fixture as a remote “sabre” of light. Paired with the FreeStyle fixture and light intensifying reflector, the tube projects soft light forward at a 100° beam angle at about the same light levels you’d get from a 1000W tungsten softlight.

The White menu features Dimming, tunable Kelvin range from 2700K tungsten to 6500K daylight and Green/Magenta control channels. The Green/Magenta control can be scaled from 0- to 100, where 25 = ¼ correction, 50 = ½ correction and 100 = full correction.

In the Gels/Hue menu, the Kelvin range is extended to 2500K Kelvin to 9900K daylight and a fourth channel is called Gel. The Gel channel includes Kino Flo presets such as blue & green screen, sodium vapor, mercury vapor as well as over 100 well-known lighting gels. The gel function can be applied to any Kelvin temperature and by pushing the control knob in/out, the gel will be applied
or removed. A fifth channel called Hue Angle (Hue) and sixth channel Saturation (Sat) are also included in the gel menu. These two channels behave similar to a traditional color wheel, where white light is in the center and Hue Angle determines the color along a 360-degree range and Saturation determines how much color is applied. With the Hue Angle and Saturation it is possible to create over 2 million color combinations!

The RGB color menu gives individual control of red, green and blue LED’s. The RGB mode is a great way to work with apps with predetermined RGB presets or color wheels. RGB menu is also a great feature to dial in specific gel RGB values or when controlling colors from a DMX desk.

The FX (Effects) menu introduced on June 1, 2018 provides access to popular effects such as Candle, Fire, TV, Police, Lightning, Paparazzi, Pulse and Scroll. When on the desired effect, there are several pre-sets as well as control parameters that can be altered. For example, in the Lightning effect there is a “Storm” and “Frankenstein” preset, but it is possible to change Rate to provide additional variation.

True Match® 4.0 Firmware update in September 2019 includes groundbreaking features: CIE xy, Camera Profiles LUTs and Color Space selection.

The CIE xy determines the color displayed by its X and Y space coordinates. For example, with a handheld color meter like the Sekonic C-800, users can obtain a CIE xy reading from any light source and input the CIE xy coordinates into the Kino Flo LED fixture to match colors closely.

Camera Profiles LUTs available for the following cinema cameras and more to follow: Panavsion DXL, Sony Venice, Arri Alexa, Panasonic Varicam. Kino Flo’s True Match® 4.0 firmware balances their LED lights to the cameras rather than the other way around. The Kino Flo designed tungsten and daylight LED emitters harmonize with the camera sensors even as the color temperature settings are adjusted.

The Color Space defines the RGB color space (white point and RGB primary colors) as a means of matching color points between manufacturing. Defining the color space takes the guesswork out of post-production workflow and color grading. Included in the 4.0 firmware are: rec 709/sRGB, P3 D65, rec 2020, and ESTA E1.54.

The firmware listed above is loaded onto the FreeStyle LED controller and can operate the Freestyle T44 & T24 fixtures remotely with a 25ft extension cable. The Freestyle controller (LED-140X), includes standard DMX in/out ports for cable as well as wireless DMX connectivity (Lumen Radio®). The controller features universal AC voltage input 100-240vac (1.25 Amps at 120vac) as well as a
3-Pin XLR for 24vdc operation (6.25A).

The FreeStyle 140 LED DMX controller firmware is updatable from a PC using the Mini B USB data port.
For the latest True Match Firmware update available click here

  • Kelvin presets
  • Dial-in color temperature control between 2500K-9900K
  • Green/Magenta Control
  • Hue angle and Saturation adjustments
  • RGB control
  • CIE xy
  • FX Control
  • Camera Profiles LUTs
  • Color Space
  • Works with Apps with predetermined RGB presets or color wheels
  • Can use preset buttons to store custom Kelvin settings
  • Light levels do not change when selecting Kelvin settings
  • No color shift while dimming
  • Color-correct with high color rendering index (CRI 95)
  • Universal input 100VAC-240VAC or 24VDC
  • Energy efficient, draws 1.25A, 120VAC and 6.25A, 24VDC
  • Flicker-free, quiet operation
  • Full range onboard and DMX dimming
  • DMX wireless link (Lumen Radio®)
  • DMX Auto Terminate
Contents

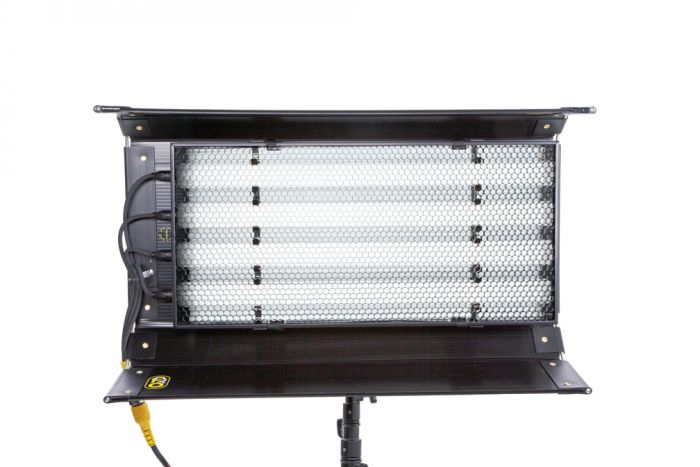

2 FreeStyle T24 LED Fixture (CFX-F244)
8 FreeStyle 2ft LED Tube (FS-24)
2 FreeStyle 140 LED DMX Controller (LED-140X)
2 MTP-BG41 Mount w/Baby Receiver (16mm) (MTP-BG41)
2 Extension, 25ft (X12-25)
1 Ship Case (KAS-FT24N)


Dimensions
91.5 x 33 x 42cm (36 x 13 x 16.5”)

Weight

27kg (59.5 lb)
